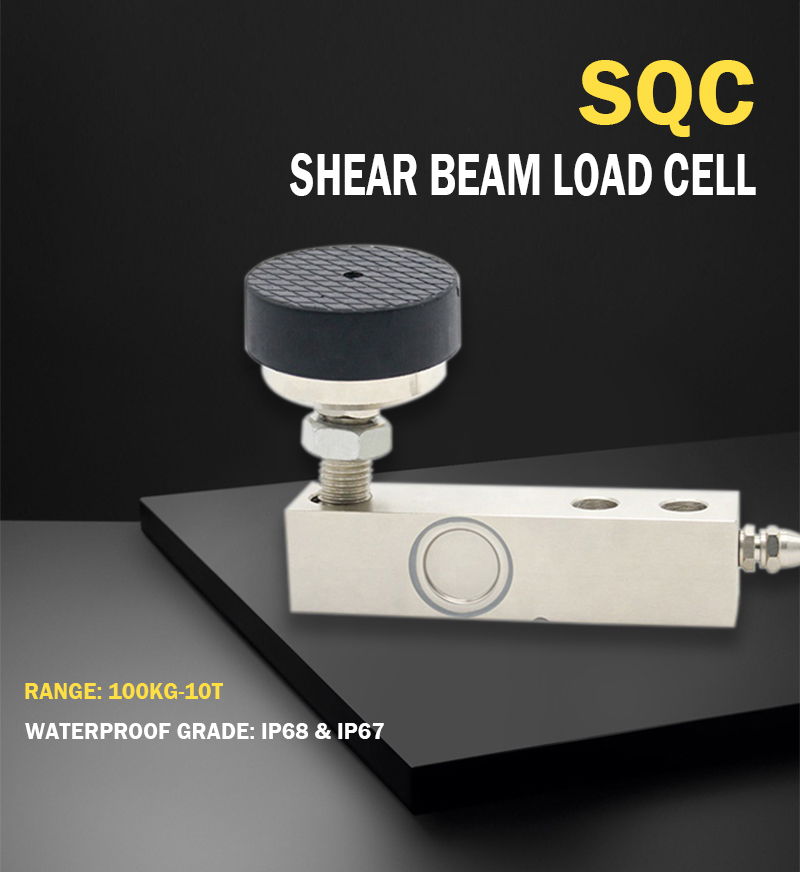

shear beam load cell
SQC
The SANTWELL shear Beam Load Cell is a high-precision weighing sensor designed for diverse industrial applications. Engineered with advanced technology and superior materials, this load cell ensures accurate, reliable, and stable weight measurements。
Quantity
Precision and Durability Redefined

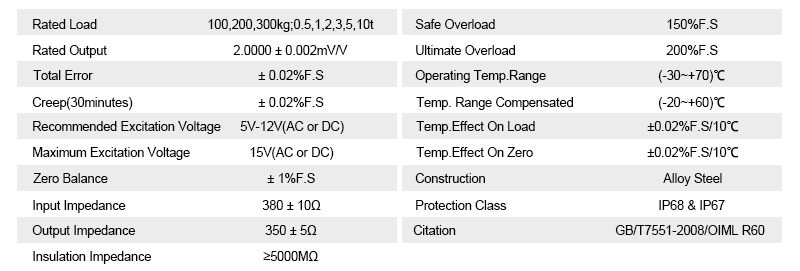

The SQC Shear Beam Load Cell is a paragon of accuracy and toughness. With a capacity range from 100kg to 10T, it offers a rated output of 2.0000 ± 0.002mV/V and a total error of just ±0.02% F.S. Crafted from top - grade alloy steel, it boasts excellent corrosion resistance, low - temperature resilience, and impact resistance, ensuring a long - lasting performance in diverse environments.
Advanced Protection and Connectivity

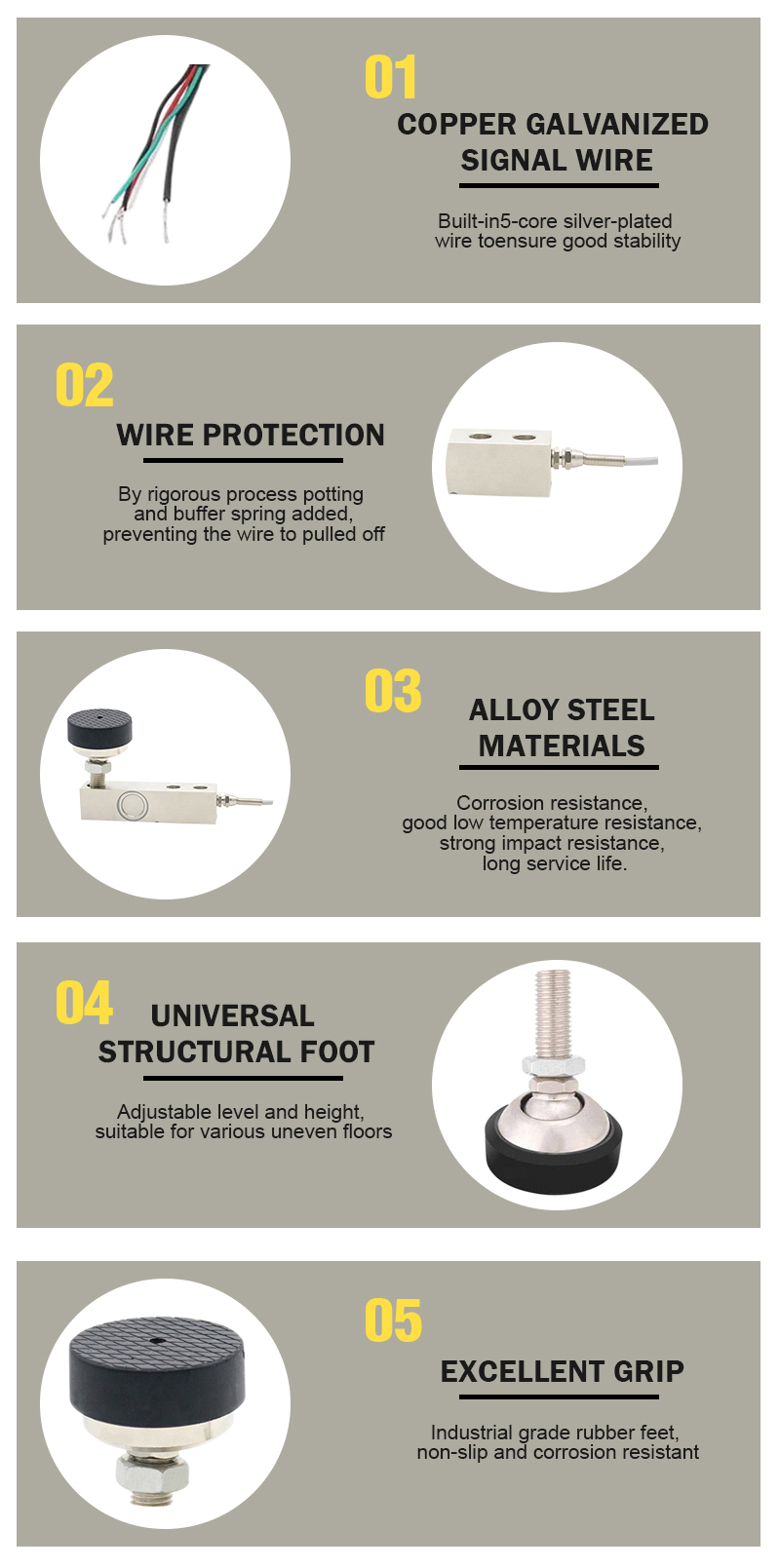

Featuring waterproof grades of IP68 and IP67, this load cell is well - equipped to handle harsh conditions. The copper galvanized signal wire, with a built - in 5 - core silver - plated wire, ensures stable signal transmission, while the wire protection mechanism, with potting and a buffer spring, safeguards against wire damage. Its robust construction and advanced features make it reliable for heavy - duty applications.
User - centric Design for Versatility

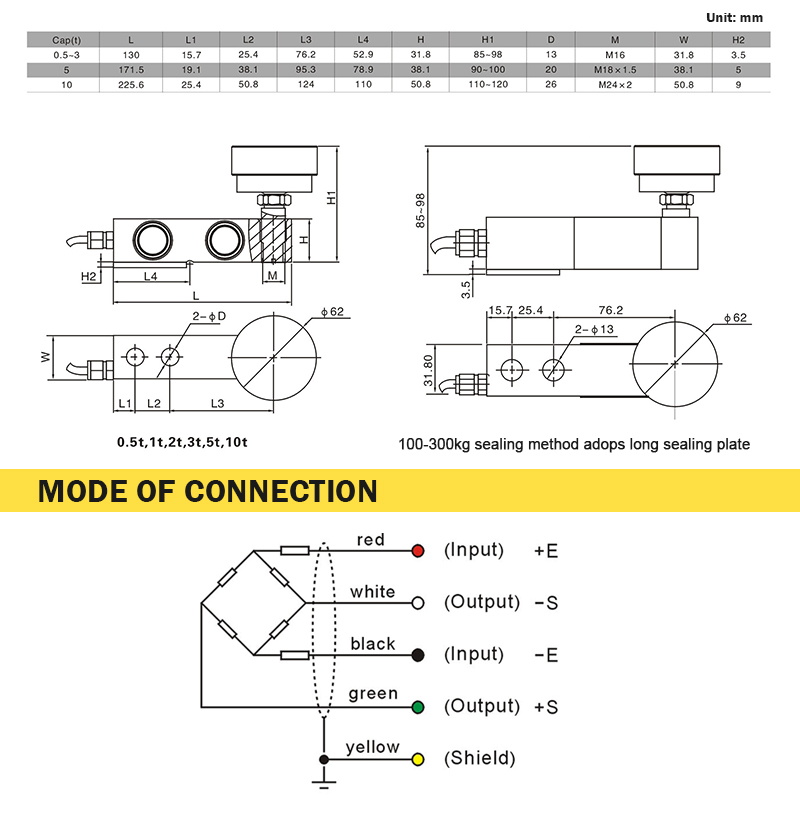

Designed with a universal structural foot, it can be adjusted for level and height, making it suitable for uneven floors. The industrial - grade rubber feet provide excellent grip, being non - slip and corrosion - resistant. With clear connection wiring and a wide operating temperature range of (-30~+70)°C, it's easy to install and operate, making it an ideal choice for various weighing needs in industries such as logistics and manufacturing.
