Santwell Stainless Steel Singel Point Load Cell

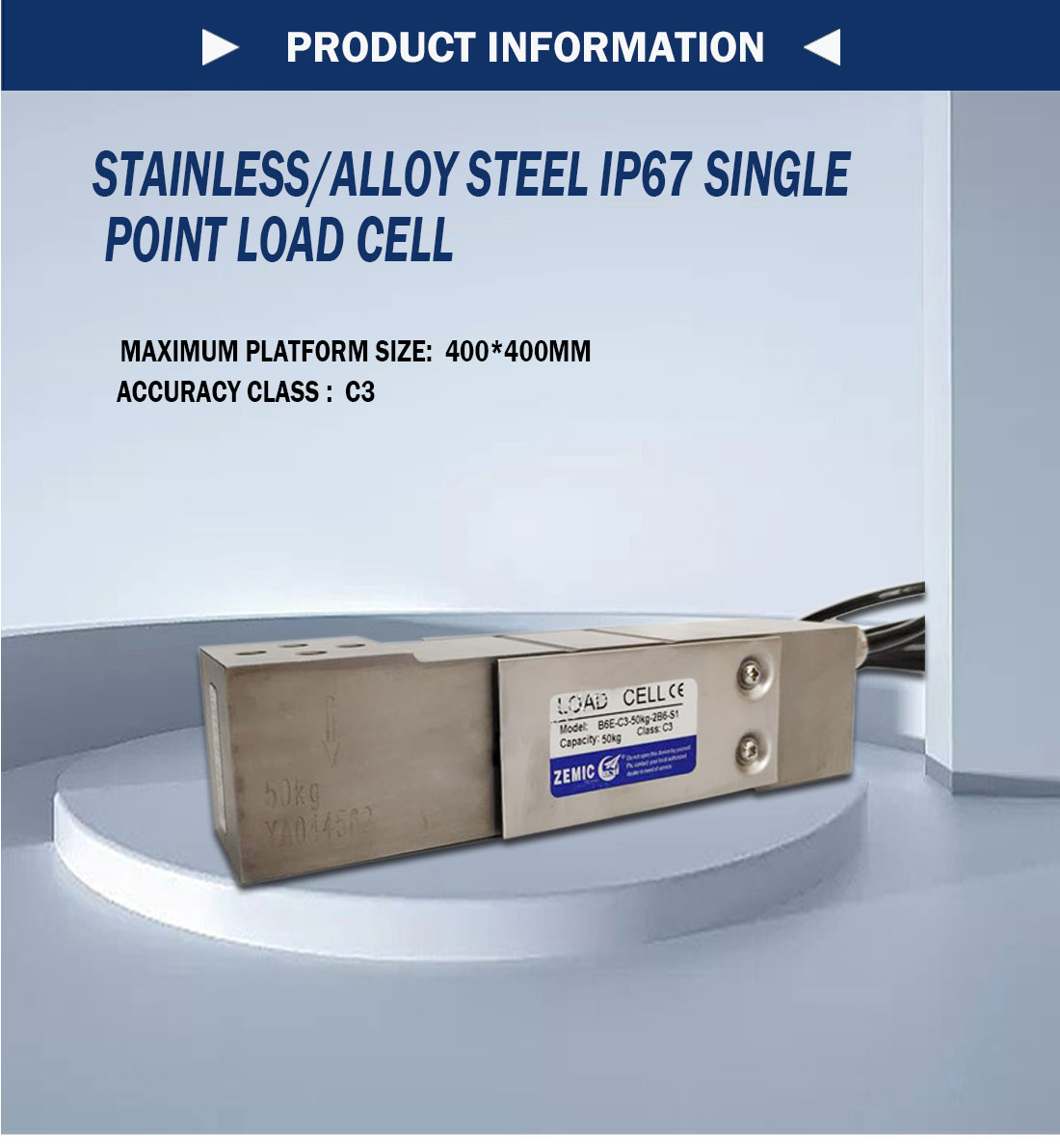

The B6E3 load cell is a high-precision single-point load cell constructed from stainless/alloy steel, featuring an IP67 protection class. It is designed for use in various industrial weighing applications, with a maximum platform size of 400×400mm and an accuracy class of C3.

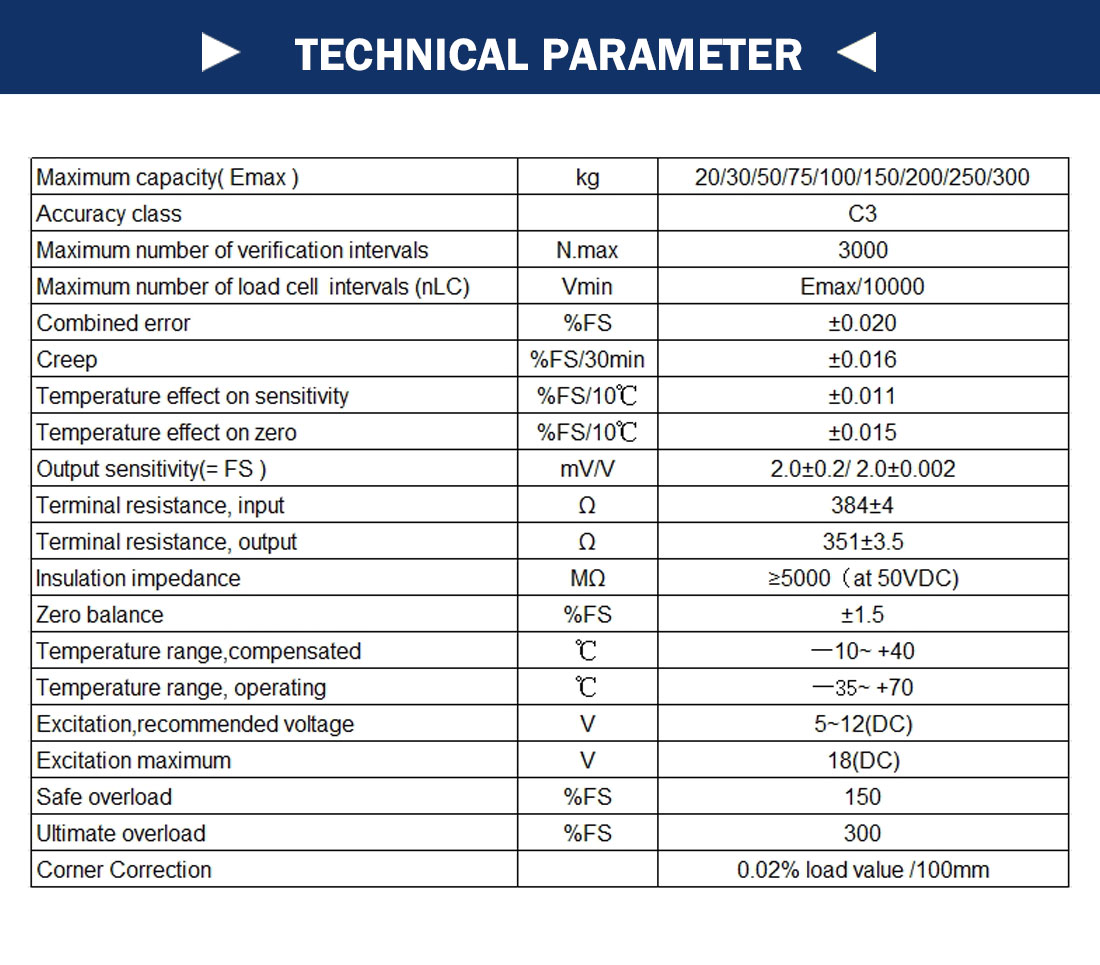

In terms of performance, the B6E3 load cell offers a maximum capacity (Emax) ranging from 20kg to 300kg. It provides a combined error of ±0.020%FS and a creep of ±0.016%FS/30min, ensuring accurate and stable measurements over time. The temperature effect on sensitivity is ±0.011%FS/10°C, and the temperature effect on zero is ±0.015%FS/10°C. The output sensitivity is 2.0±0.2 mV/V or 2.0±0.002 mV/V, depending on the specific model.

Electrical specifications include an input terminal resistance of 384±4Ω and an output terminal resistance of 351±3.5Ω. The insulation impedance is ≥5000MΩ at 50VDC. The zero balance is ±1.5%FS. The compensated temperature range is -10 to +40°C, and the operating temperature range is -35 to +70°C. The recommended excitation voltage is 5-12V (DC), with a maximum of 18V (DC). The safe overload capacity is 150%FS, and the ultimate overload capacity is 300%FS. The corner correction is 0.02% load value/100mm.
