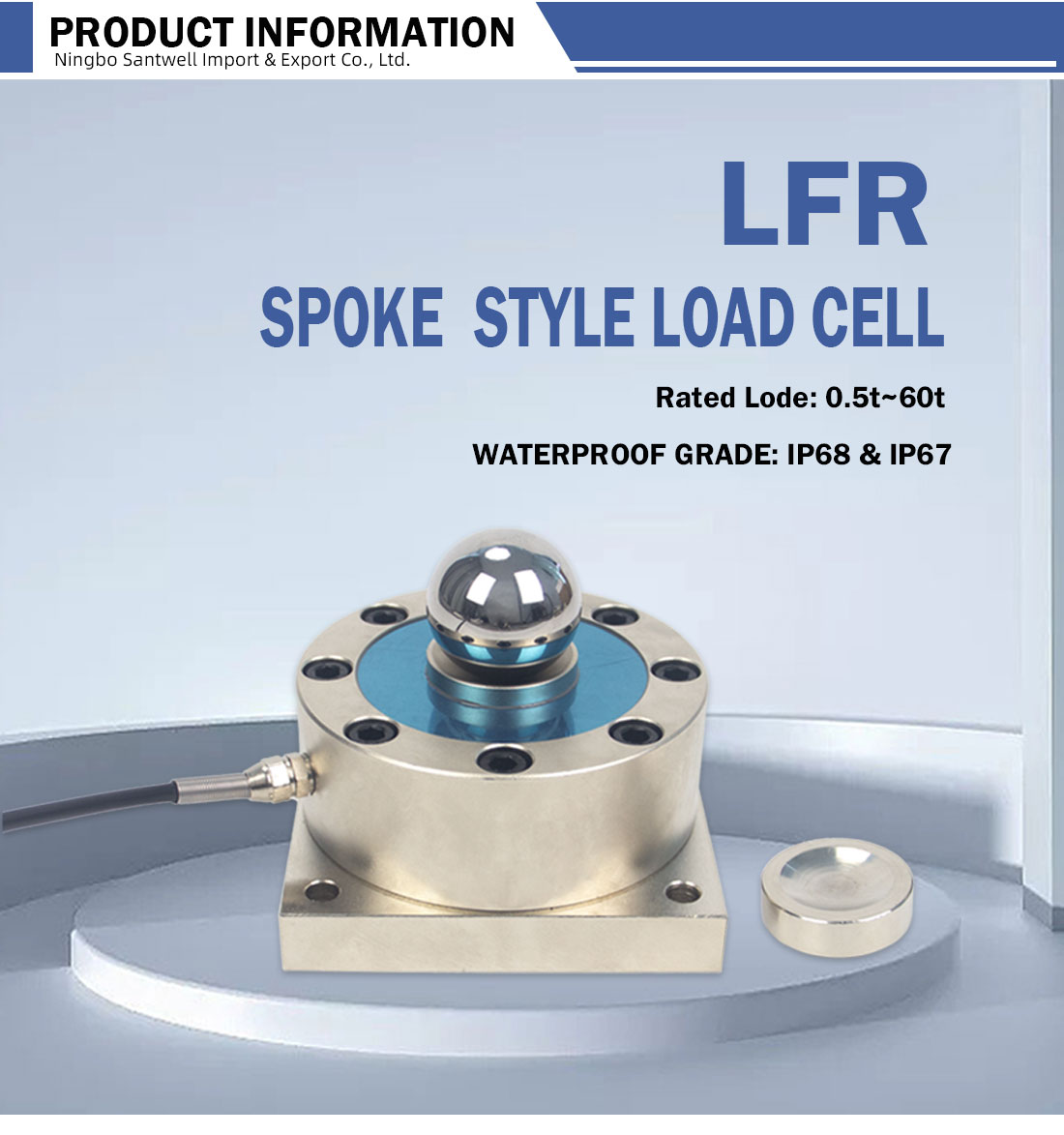

Santwell Spoke Style Load Cell
LFR
The LFR load cell offers a wide rated load range from 0.5t to 60t, making it suitable for various heavy-duty applications.
Quantity

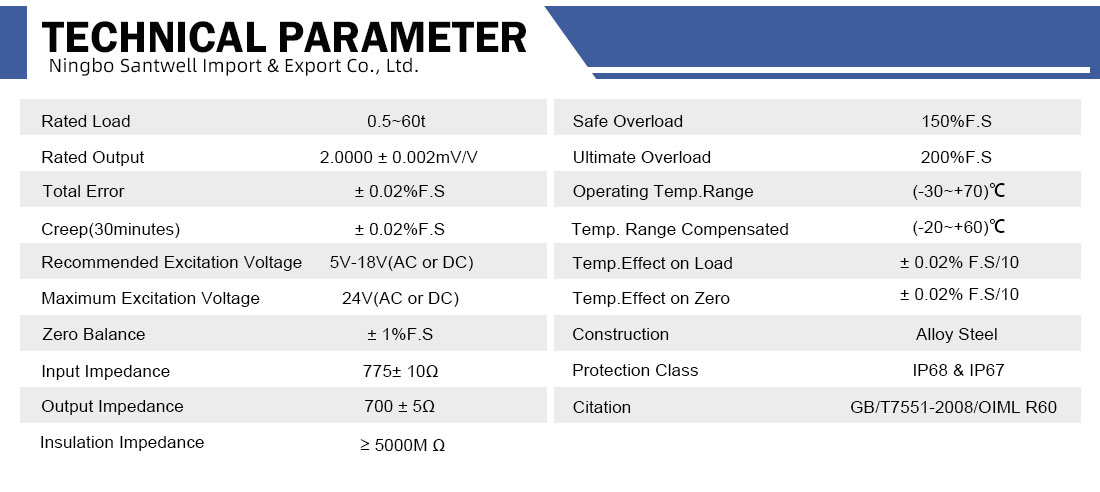

Rated Load: The LFR load cell offers a wide rated load range from 0.5t to 60t, making it suitable for various heavy-duty applications.
Accuracy and Output: It provides a rated output of 2.0000 ± 0.002 mV/V with a total error of ±0.02%F.S. The creep over 30 minutes is also ±0.02%F.S, ensuring long-term measurement stability.
Excitation Voltage: The recommended excitation voltage is 5V-18V (AC or DC), with a maximum of 24V (AC or DC).
Zero Balance: The zero balance is ±1%F.S.
Impedance: Input impedance is 775±10Ω, and output impedance is 700±5Ω. Insulation impedance is ≥5000MΩ.
Overload Capacity: Safe overload capacity is 150%F.S, and ultimate overload is 200%F.S.
Temperature Performance: Operating temperature range is (-30~+70)°C, with a compensated temperature range of (-20~+60)°C. Temperature effect on load and zero is ±0.02% F.S/10°C.
Construction and Protection: Made of alloy steel, the LFR load cell has a protection class of IP68 & IP67, providing excellent resistance to dust and water.
Citation: Complies with GB/T7551-2008 and OIML R60 standards.
