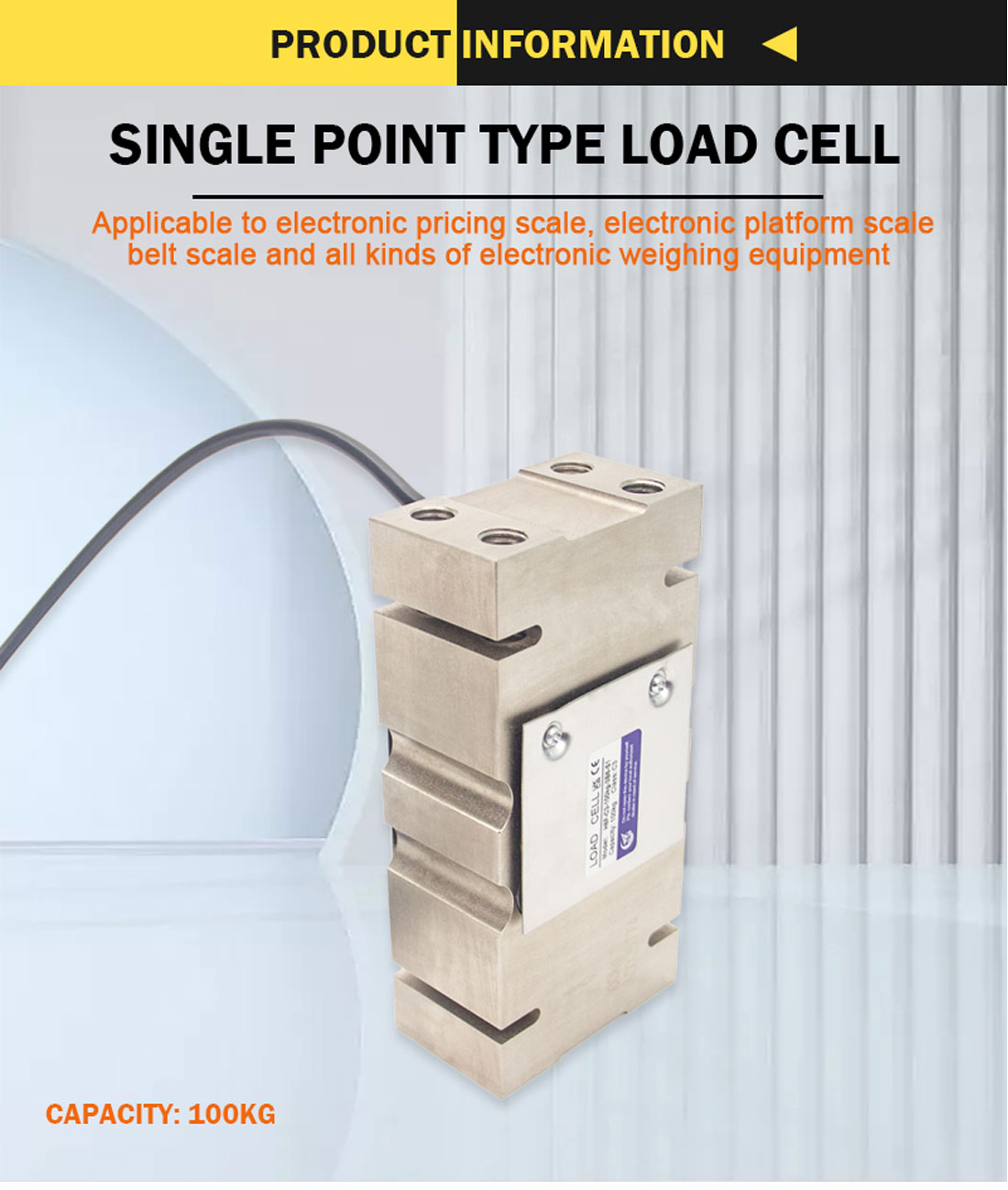

Santwell Singel Point Type Load Cell

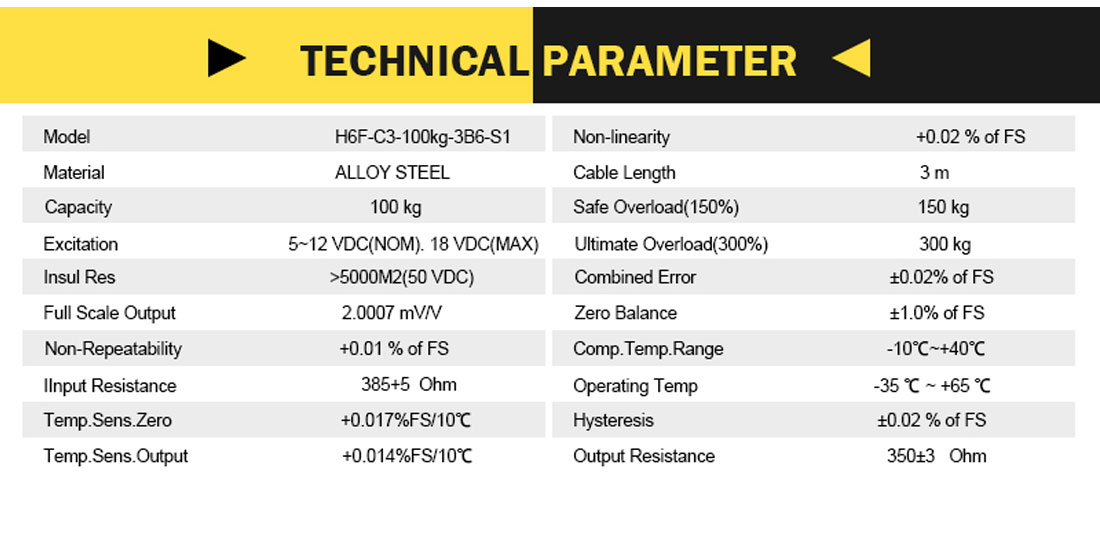

The H6F - C3 is a single - point type load cell crafted from alloy steel, a critical component that works seamlessly with weighing indicators to ensure robust performance for electronic weighing applications like pricing scales, platform scales, and belt scales. With a 100kg capacity, it operates on 5 - 12VDC excitation (max 18VDC) and boasts high precision—non - linearity, hysteresis, and combined error are ±0.02% of FS, while non - repeatability is +0.01% of FS—data that the indicator relies on for accurate weight readings. It features a 3m cable for flexible installation, allowing easy connection to the indicator, and has insulation resistance >5000MΩ (50VDC), plus input/output resistances of 385±5 Ohm and 350±3 Ohm respectively, ensuring stable signal transmission to the indicator. Its temperature characteristics include +0.017%FS/10℃ (zero) and +0.014%FS/10℃ (output), minimizing signal drift that could affect the indicator’s accuracy, and it has a safe overload of 150kg and ultimate overload of 300kg. This load cell’s reliability makes it a key partner for the indicator, together suitable for diverse industrial weighing environments demanding accuracy and durability.
