Santwell Micro load cell
GML670
Quantity

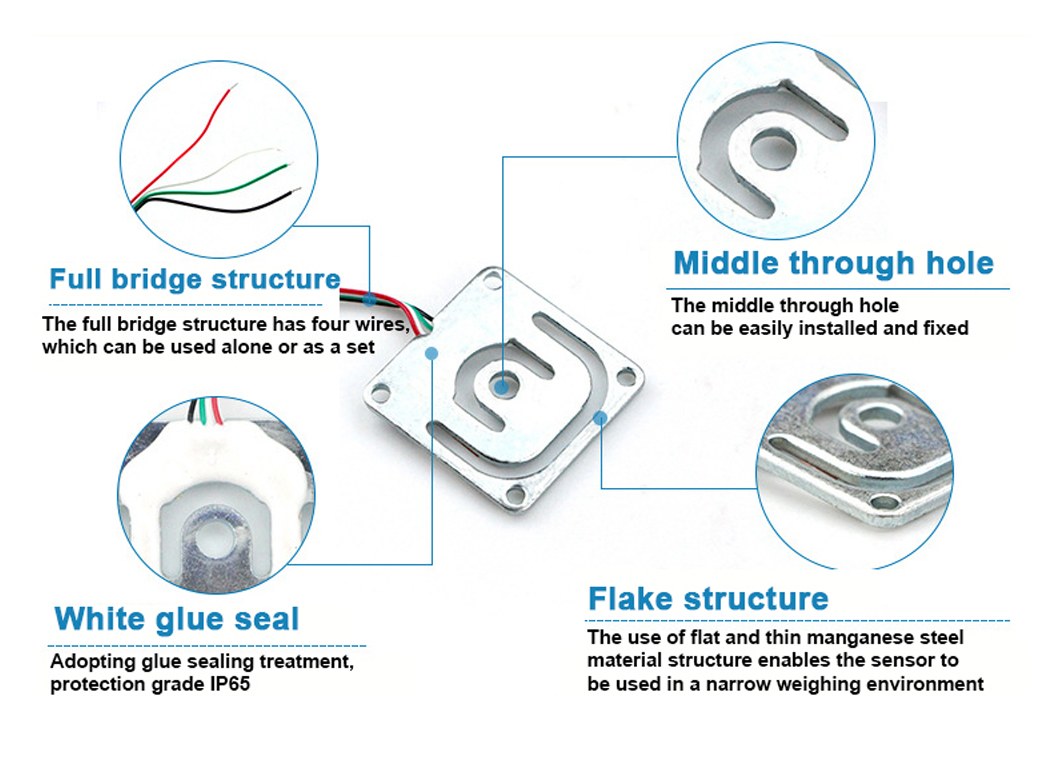

Introducing our Mini Load Cell, a compact yet powerful solution for weighing applications. Despite its small size, it packs a punch with high - precision capabilities. The load cell features a unique flake structure made from flat and thin manganese steel, enabling it to be used even in narrow weighing environments. It comes with a middle through hole, which simplifies the installation and fixing process, making it convenient for a variety of setups. This mini load cell is designed to meet the demands of both simple and complex weighing tasks with ease.
The structural design of our Mini Load Cell is both innovative and practical. It adopts a full - bridge structure with four wires, offering the flexibility to be used individually or as part of a set. This design ensures accurate and stable weighing results. Additionally, the load cell undergoes a white glue seal treatment, achieving an IP65 protection grade. This safeguard makes it resistant to dust and low - pressure water jets, enhancing its durability and reliability in different working conditions.

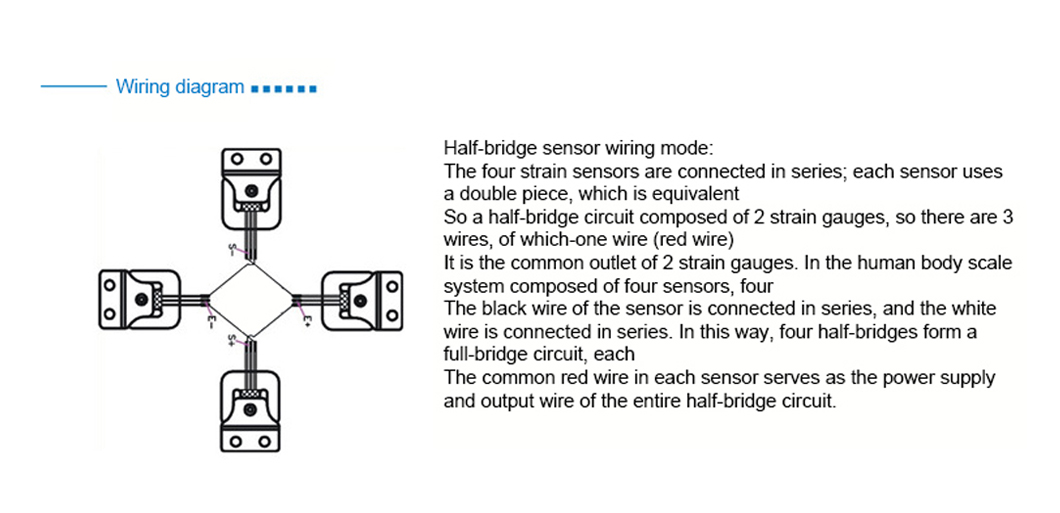

Regarding wiring, our Mini Load Cell has a clear and straightforward mode. In the half - bridge sensor wiring mode, four strain sensors are connected in series, with each sensor using a double - piece equivalent to a half - bridge circuit. The common red wire serves as the power supply and output wire for the entire half - bridge circuit. This well - defined wiring makes it easy to integrate into various weighing systems. Ideal for applications like small - scale industrial weighing, laboratory measurements, and even some consumer weighing devices, this mini load cell provides accurate and consistent performance.
