Santwell Load Cell Tester

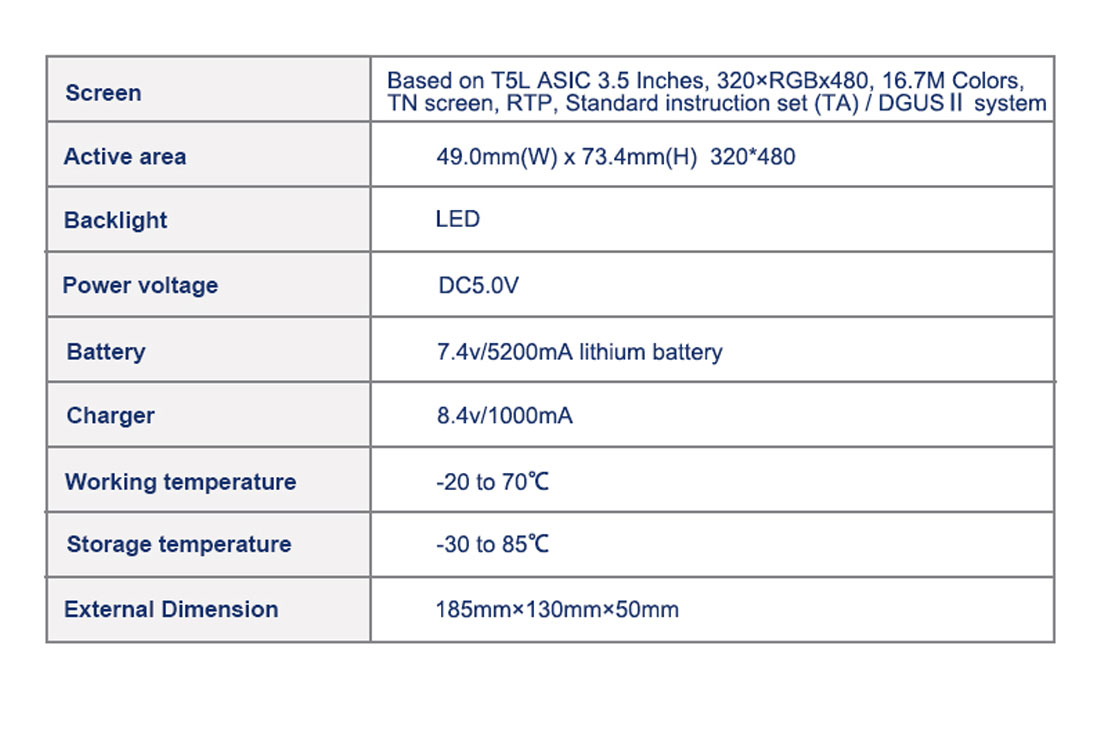

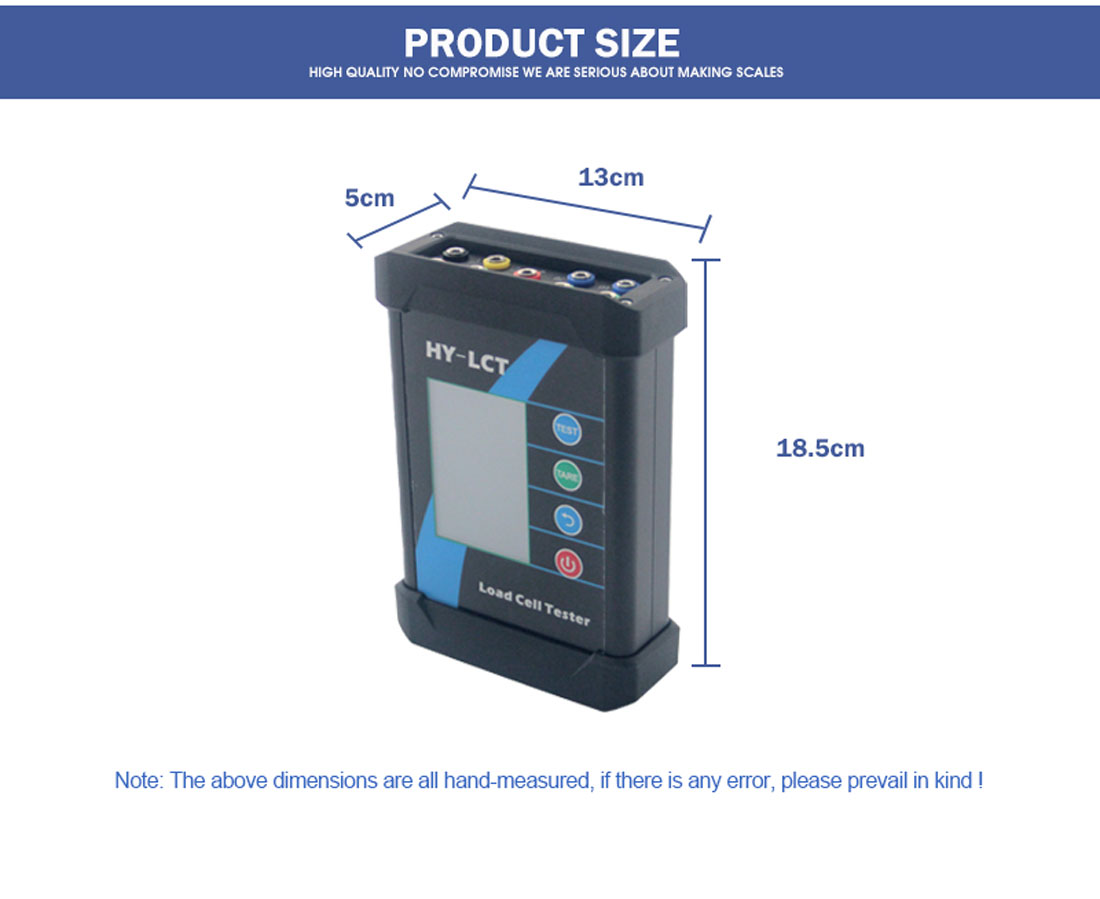

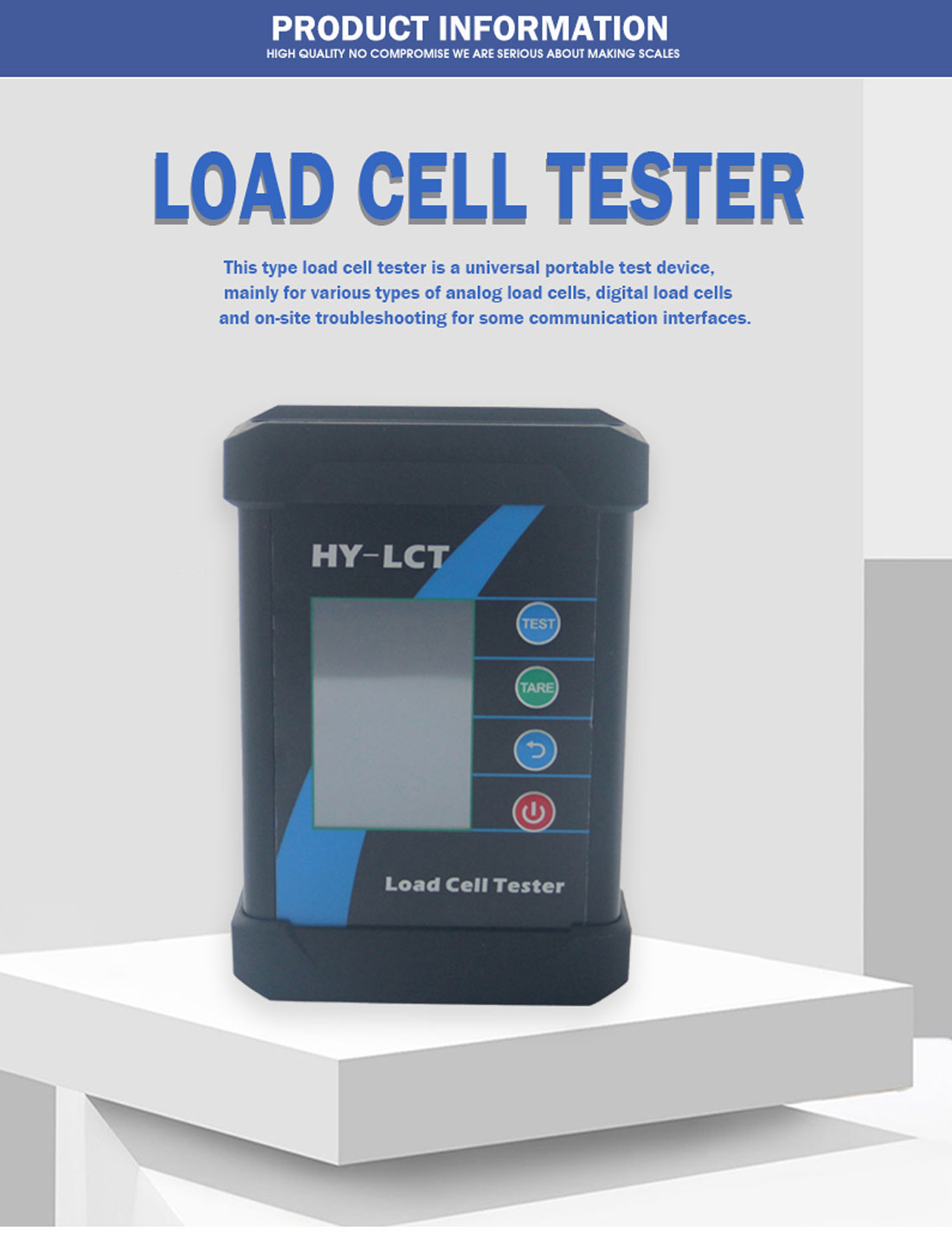

The HY - LCT is a portable, universal load cell tester designed for comprehensive testing of analog and digital load cells, along with on - site communication interface troubleshooting. It features a 3.5 - inch T5L ASIC TN screen (320×480, 16.7M colors) with LED backlight, ensuring clear display. Powered by a 7.4V/5200mA lithium battery (charged via 8.4V/1000mA adapter), it offers extended use. With a compact size of 185mm×130mm×50mm, it’s easy to carry. The tester supports a wide working temperature range (-20 to 70℃) and storage range (-30 to 85℃), suitable for diverse environments. Equipped with color - coded connectors and intuitive buttons (TEST, TARE, etc.), it enables quick setup and accurate testing, making it essential for maintaining load cell performance in industrial weighing systems.
