Canister Style Load Cell
CMF
Santwell CMF Canister Load Cell suits truck scales, with IP68, sturdy build & easy mounting.
Quantity

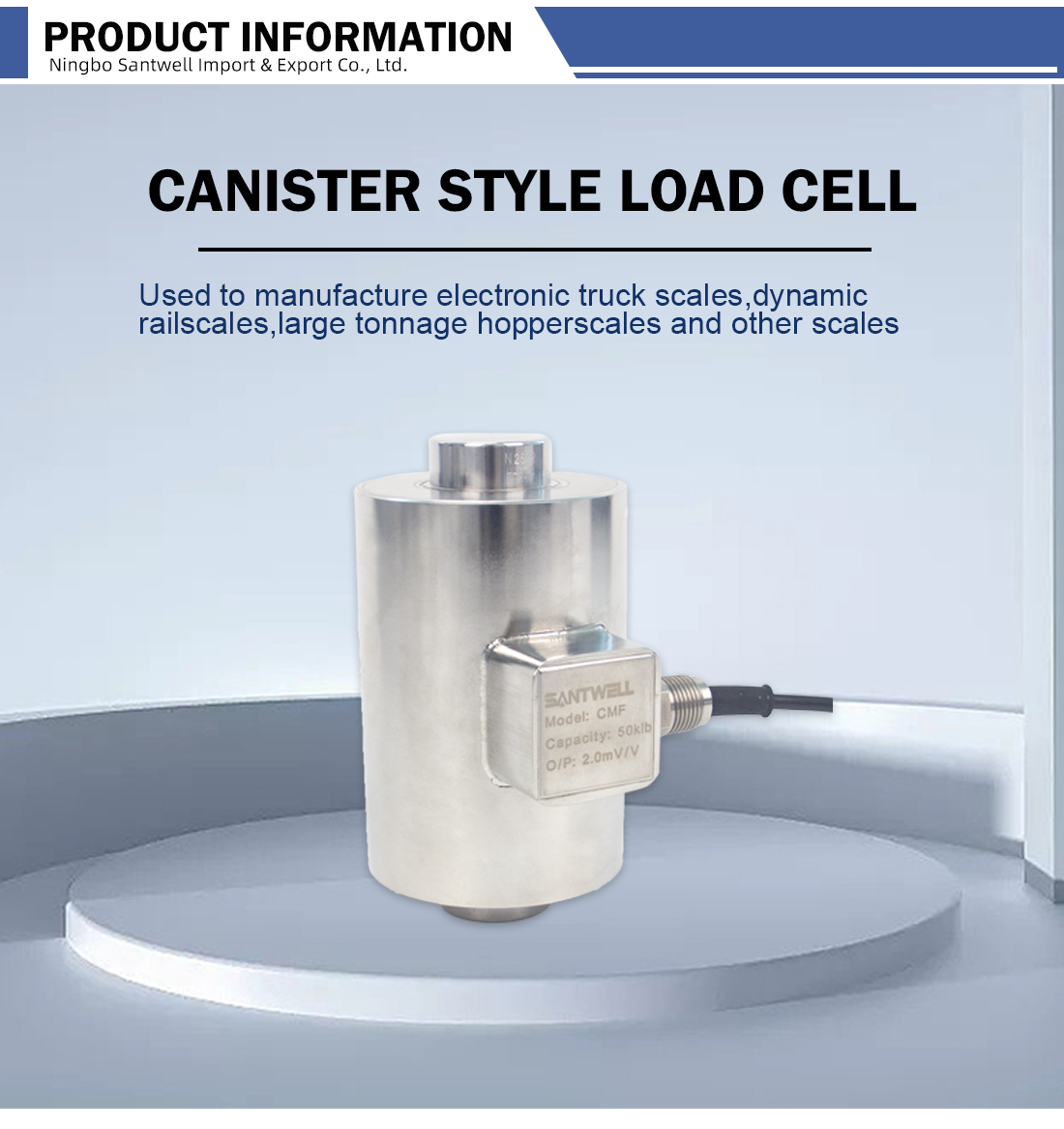

The CMF Canister Style Load Cell by Santwell is a high-performance Load Cell tailored for electronic truck scales, dynamic railscales, and large-tonnage hopperscales. As a robust Load Cell, it excels in heavy-duty weighing scenarios.

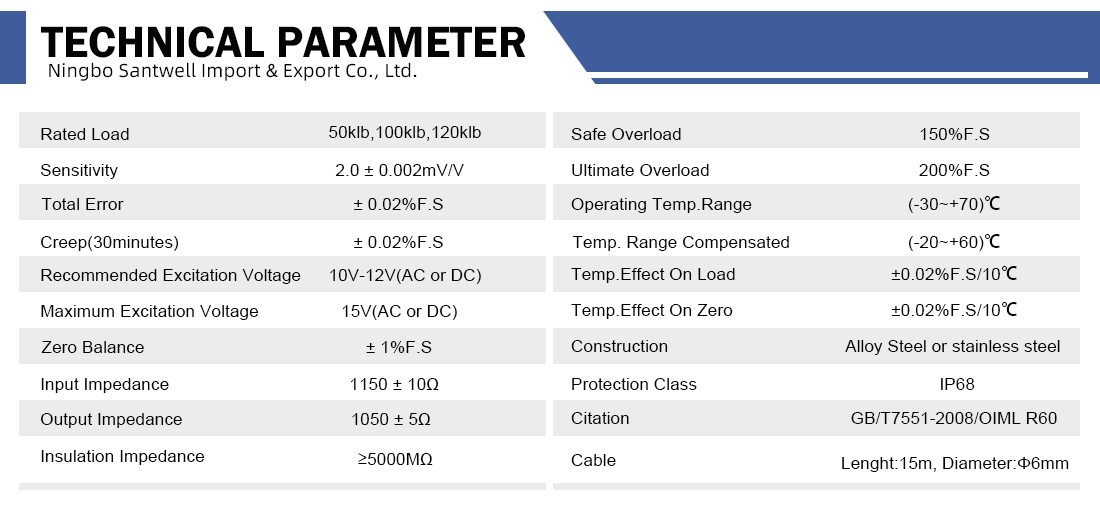

Technical Specifications:
Rated Load: This Load Cell offers 50klb, 100klb, 120klb options to match diverse heavy-load needs.
Accuracy & Stability: Sensitivity is 2.0±0.002mV/V, with total error ±0.02% F.S and 30-minute creep ±0.02% F.S, ensuring precise, consistent measurements.
Electrical Performance: Excitation voltage ranges 10–15V (AC/DC); input impedance 1150±10Ω, output impedance 1050±5Ω, and insulation impedance ≥5000MΩ enable reliable signal transmission.
Overload & Temperature: The Load Cell withstands 150% F.S safe overload and 200% F.S ultimate overload. It operates in -30~+70℃, with temperature effects on load/zero both ±0.02% F.S/10℃.
Durability: Crafted from alloy steel or stainless steel, it boasts an IP68 rating for dust/water resistance in harsh environments.

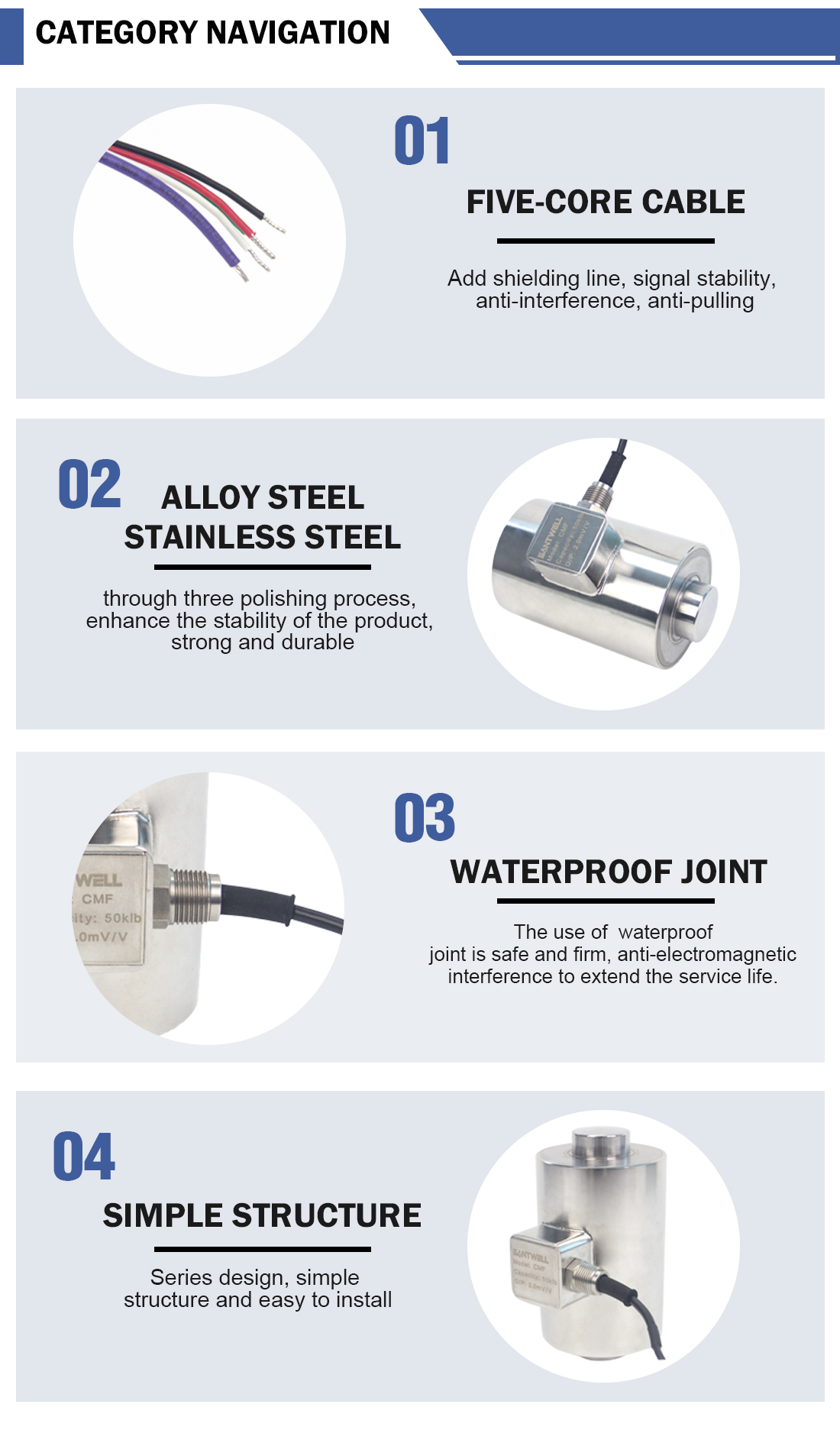

Structural Advantages:
Five-Core Cable: Enhances signal stability, anti-interference, and tensile resistance.
Polished Housing: Three polishing processes boost structural stability and longevity.
Waterproof Joint: Ensures secure, interference-resistant connections.
Modular Design: Simplifies installation while retaining robust load-bearing capacity.
The CMF Load Cell merges precision, resilience, and easy installation—ideal for demanding industrial weighing systems.
