Santwell Tension Sensor
TJZ-1

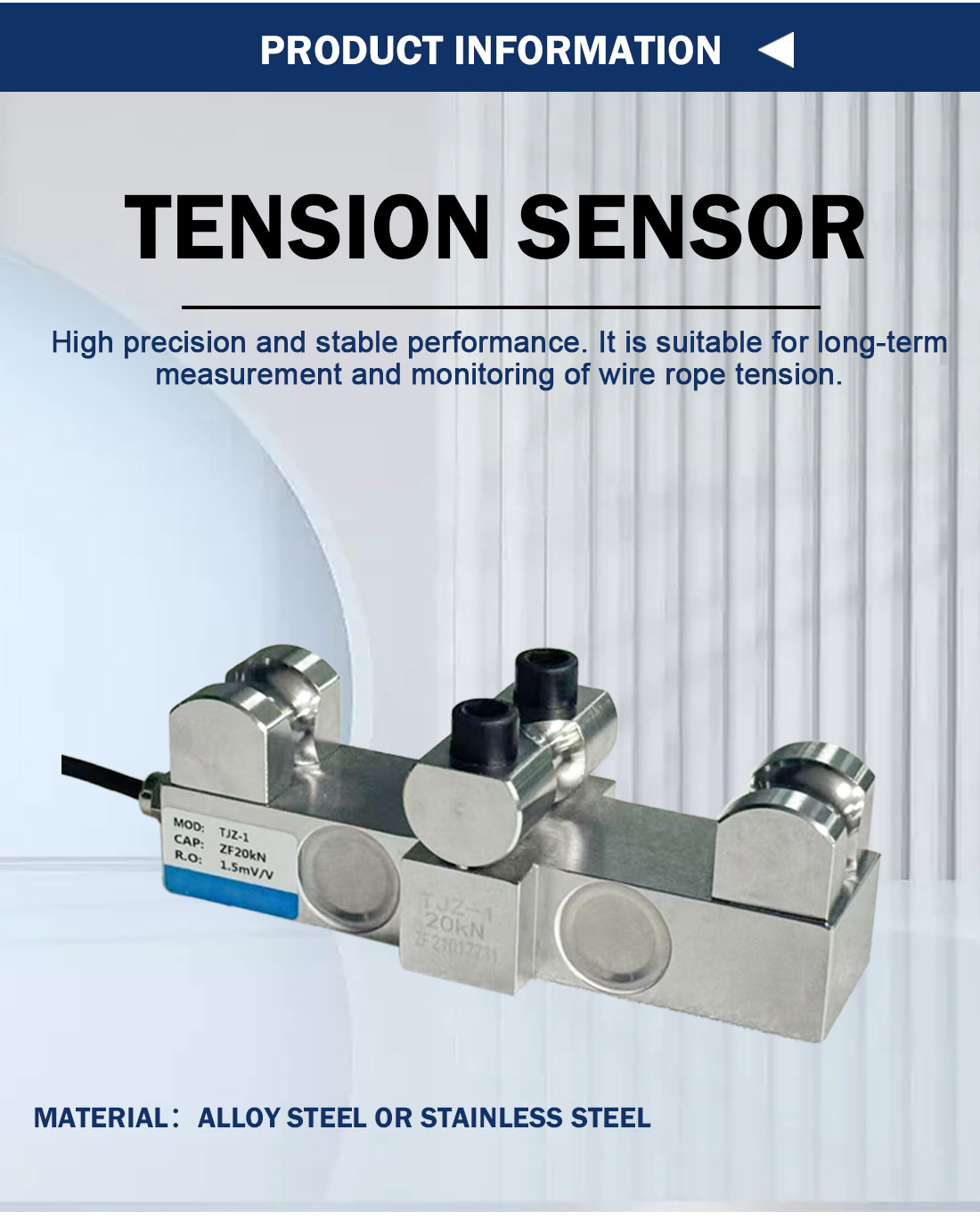

The TJZ-1 tension sensor, manufactured by Santwell, is a high-precision sensor designed for long-term measurement and monitoring of wire rope tension.
Quantity

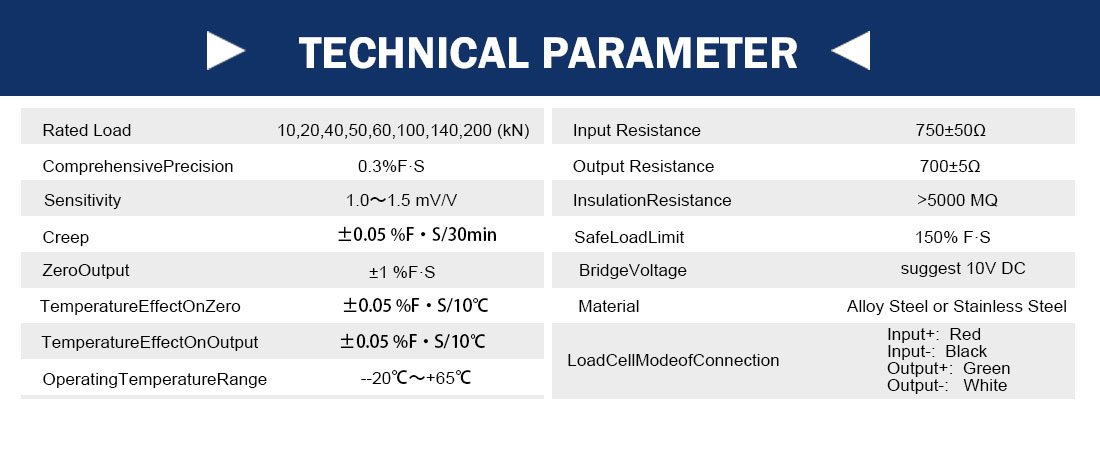

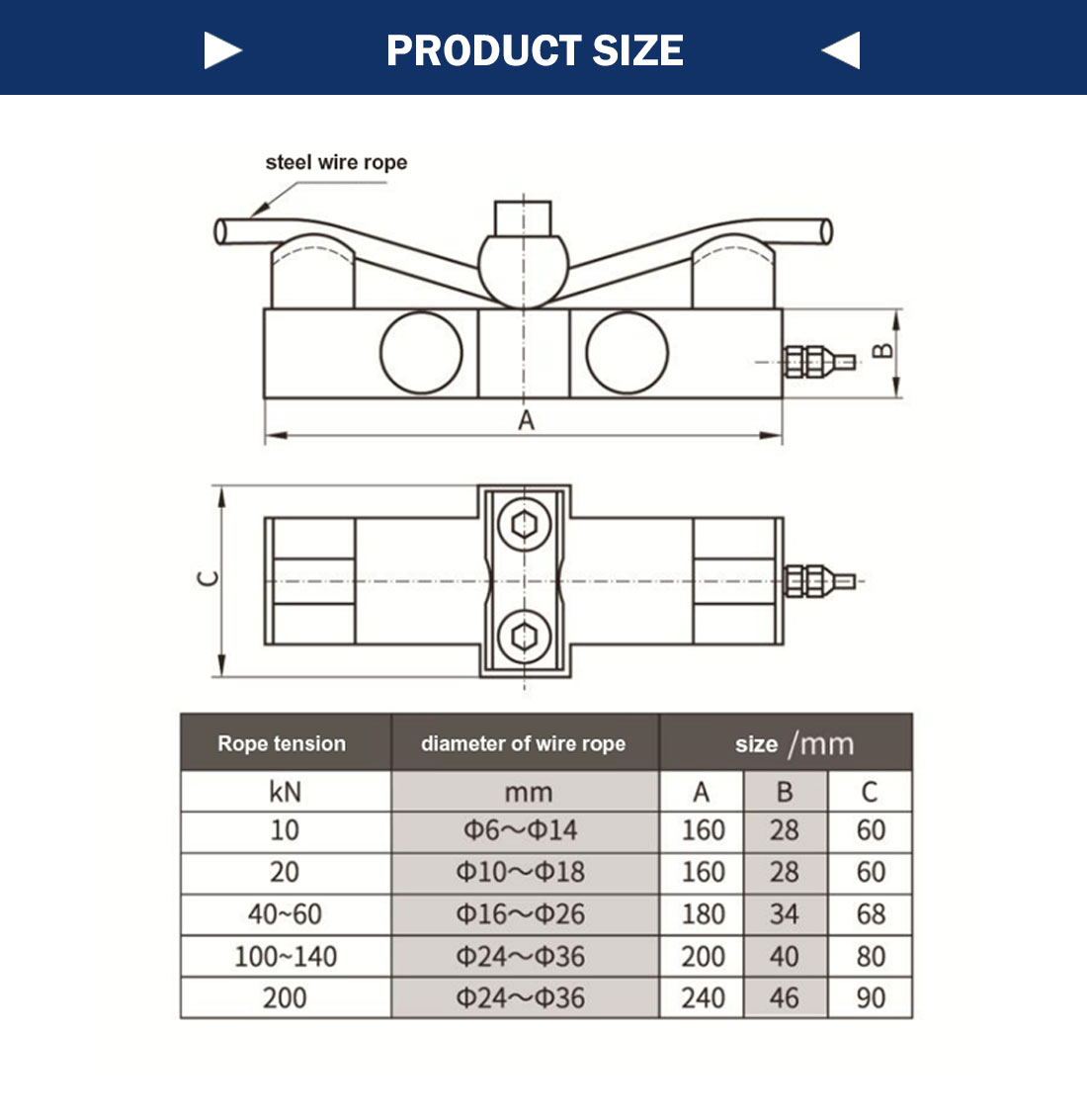

The TJZ-1 tension sensor, manufactured by Santwell, is a high-precision sensor specifically designed for long-term measurement and monitoring of wire rope tension. Constructed from alloy steel or stainless steel, it ensures durability and stable performance in various industrial environments. The sensor offers a wide rated load range from 10kN to 200kN, with a comprehensive precision of 0.3% F-S and a sensitivity of 1.0-1.5 mV/V. It exhibits excellent creep characteristics of ±0.05% F-S/30min and a zero output of ±1% F-S. The temperature effect on zero and output is ±0.05% F-S/10°C, and it operates within a temperature range of -20°C to +65°C. The input resistance is 750±50Ω, and the output resistance is 700±5Ω, with an insulation resistance of >5000MΩ. The safe load limit is 150% F-S, and the suggested bridge voltage is 10V DC. The sensor is compatible with various wire rope diameters, ranging from Φ6mm to Φ36mm, depending on the rope tension, making it versatile for different applications.
