Santwell Canister Style Load Cell
CMRC3

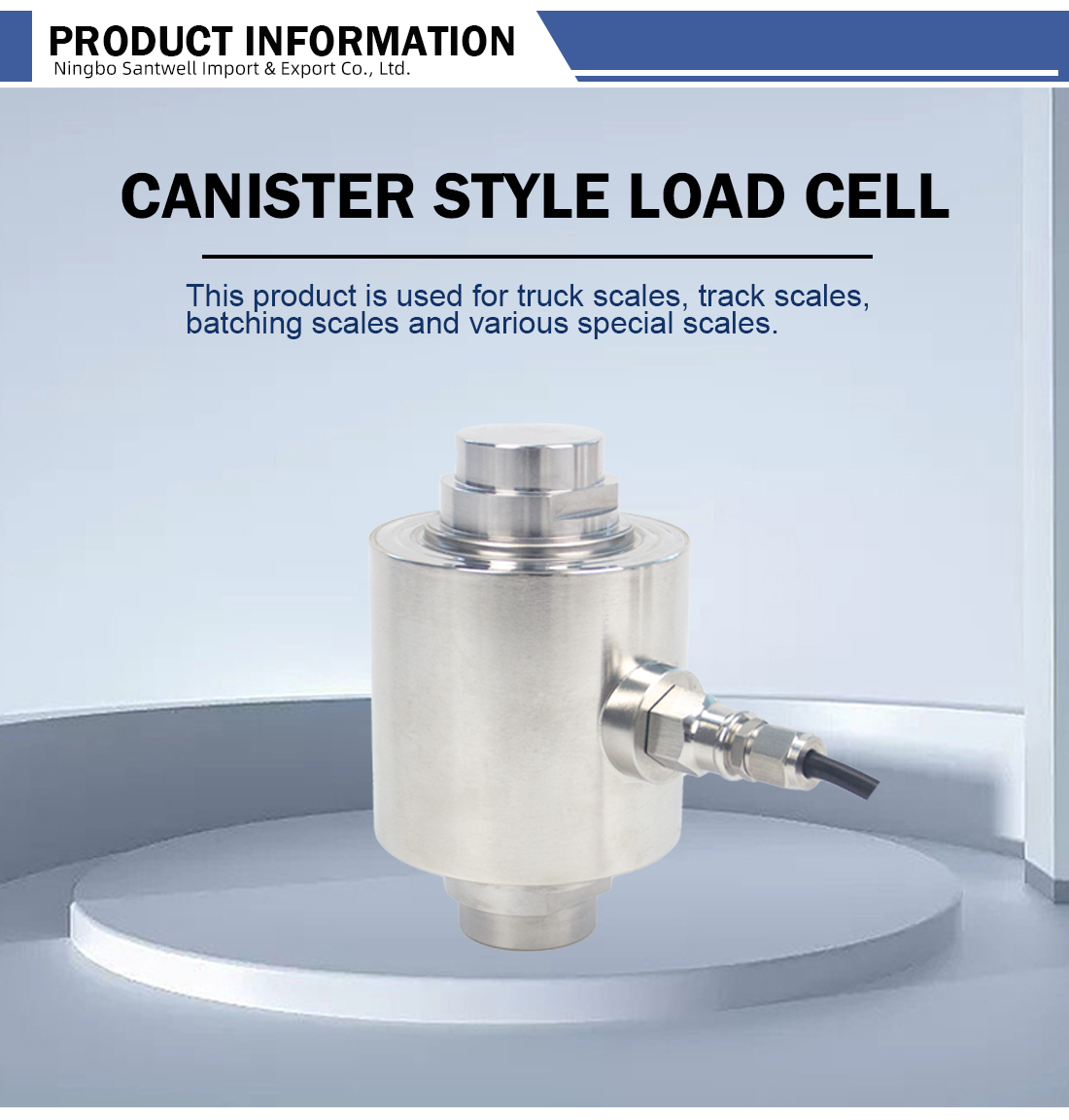

The CMRC3 load cell, a canister-style model from Santwell, is designed for high-precision weighing in industrial settings.
Quantity

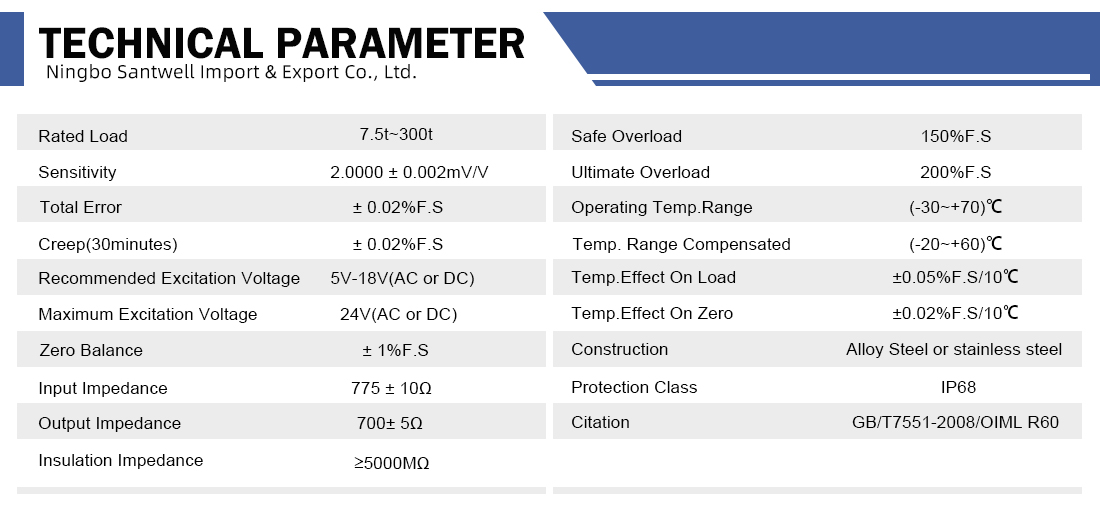

The CMRC3 load cell, a canister-style model from Santwell, is designed for high-precision weighing in industrial settings. It boasts a rated load range of 7.5t to 300t, with a sensitivity of 2.0000 ± 0.002 mV/V, ensuring accurate measurements. The total error is limited to ± 0.02% F.S, and creep over 30 minutes is ± 0.02% F.S, guaranteeing consistent performance.

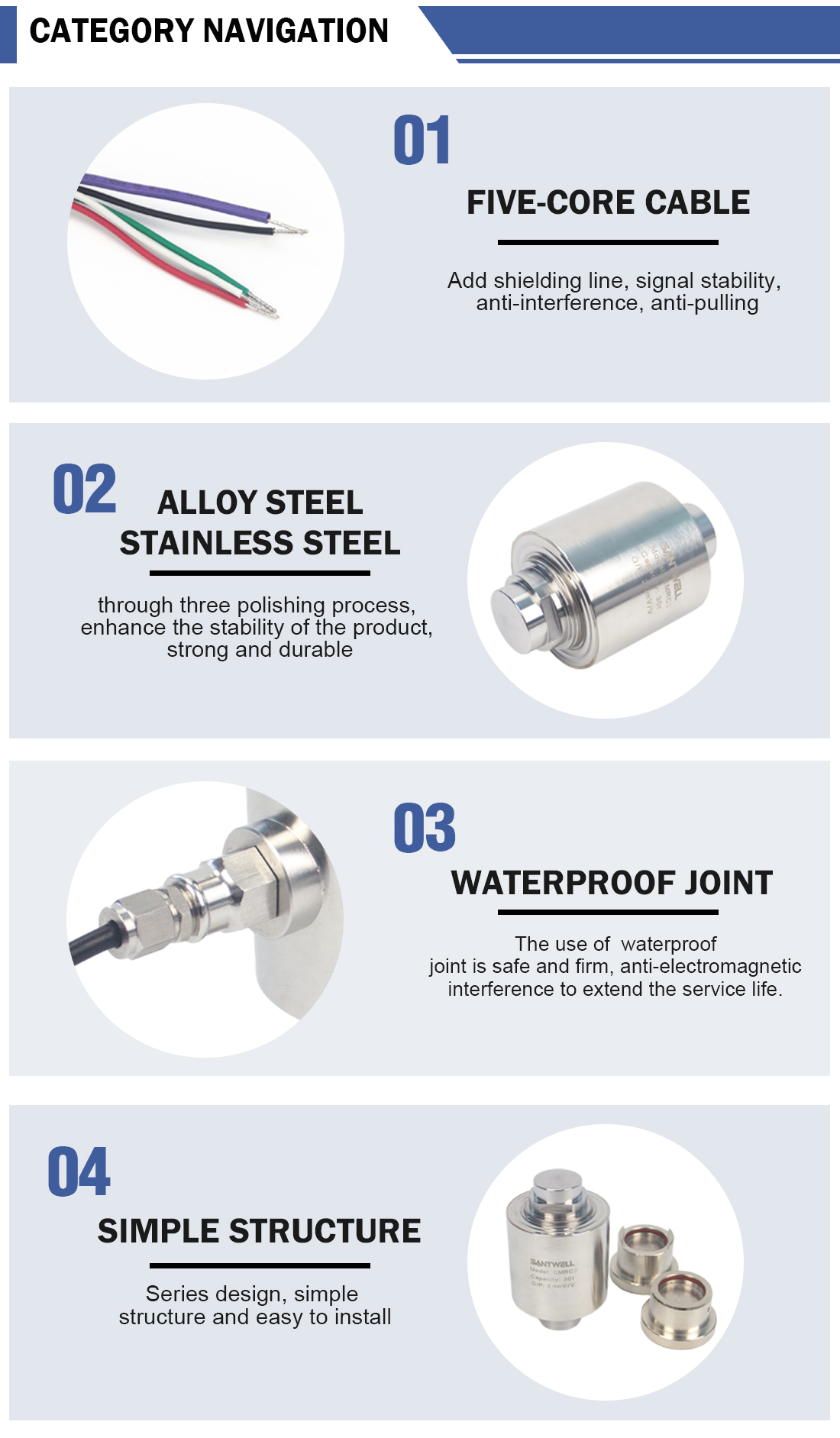

This load cell features a robust construction of alloy steel or stainless steel, providing durability and resistance to harsh environments. It has an IP68 protection rating, making it suitable for use in wet and dusty conditions. The input impedance is 775 ± 10 Ω, and the output impedance is 700 ± 5 Ω, with a recommended excitation voltage of 5V-18V (AC or DC) and a maximum excitation voltage of 24V (AC or DC).
The CMRC3 load cell also exhibits minimal temperature effects, with changes in load and zero balance of ± 0.05% F.S/10℃ and ± 0.02% F.S/10℃, respectively. It has a safe overload capacity of 150% F.S and an ultimate overload capacity of 200% F.S, ensuring reliability under extreme conditions.
