Santwell Canister Style Load Cell

Santwell’s Canister Style load cell, a high-performance weighing sensor engineered for industrial applications like truck scales, track scales, axle scales, and floor scales, stands out as a robust solution in the realm of precision measurement.

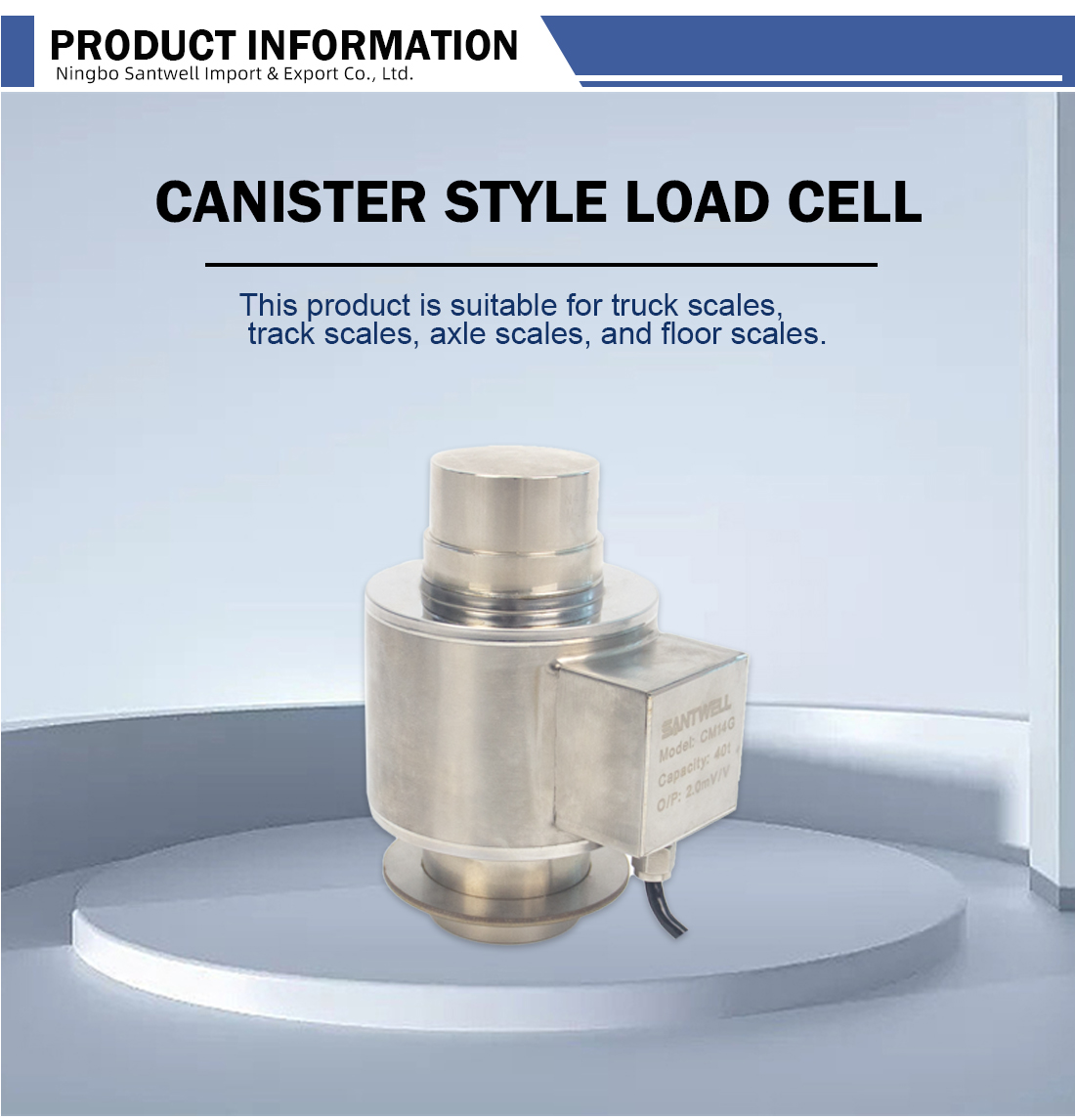

Santwell’s logo is prominently displayed, emphasizing the brand’s commitment to quality. The Canister Style load cell’s metallic, cylindrical design (visible in multiple product angles) reflects robust construction from alloy steel or stainless steel, ensuring durability and corrosion resistance—hallmarks of a top-tier load cell built for demanding environments.

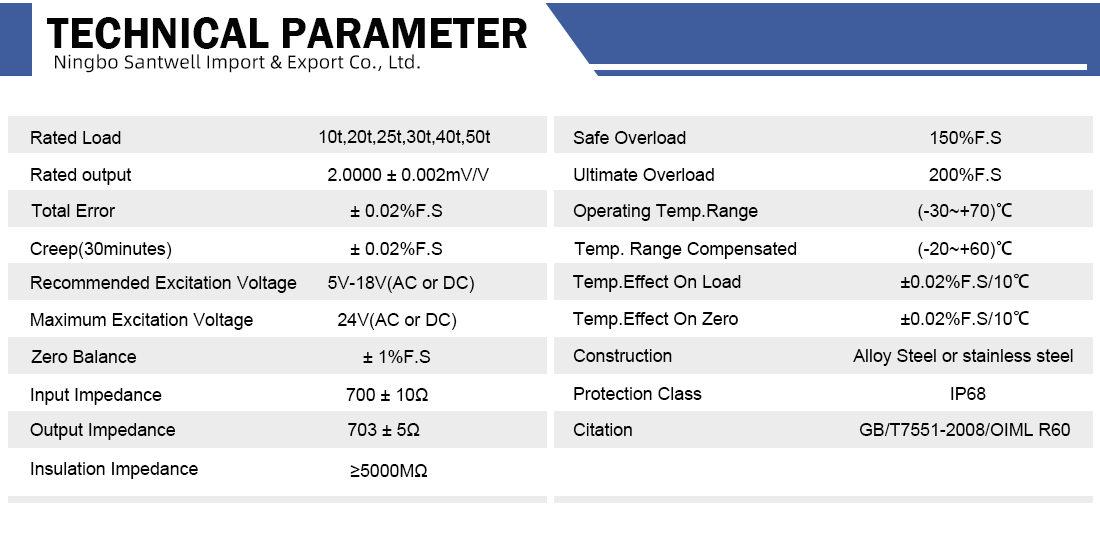

Key parameters (from the Technical Parameter chart) highlight the precision of this Canister Style load cell:

Rated Load: 10t, 20t, 25t, 30t, 40t, 50t (versatile for heavy-duty needs, a critical feature for an industrial load cell).

Accuracy: The  Canister Style load cell boasts a rated output of 2.000±0.002mV/V, total error ±0.02%F.S, and creep (30-minute drift) ±0.02%F.S—ensuring stable measurements that define a reliableload cell.

Electrical Performance: Recommended excitation voltage 5V-18V (AC/DC) (max 24V); input impedance 700±10Ω, output impedance 703±5Ω, and insulation impedance ≥5000MΩ enable the Canister Style load cell to deliver reliable signal transmission, a must for any high-precision load cell.

Environmental Resilience: Operating temperature -30~+70℃ (compensated -20~+60℃), with temperature effects on load/zero at ±0.02%F.S/10℃—qualities that make this Canister Style load cell suitable for extreme industrial settings where a standard load cell might falter.

Safety & Compliance: IP68 protection (water/dust-proof), safe overload 150%F.S, ultimate overload 200%F.S, and compliance with GB/T7551-2008/OIML R60 standards underscore why theCanister Style load cell is a trusted load cell choice for safety-critical applications.

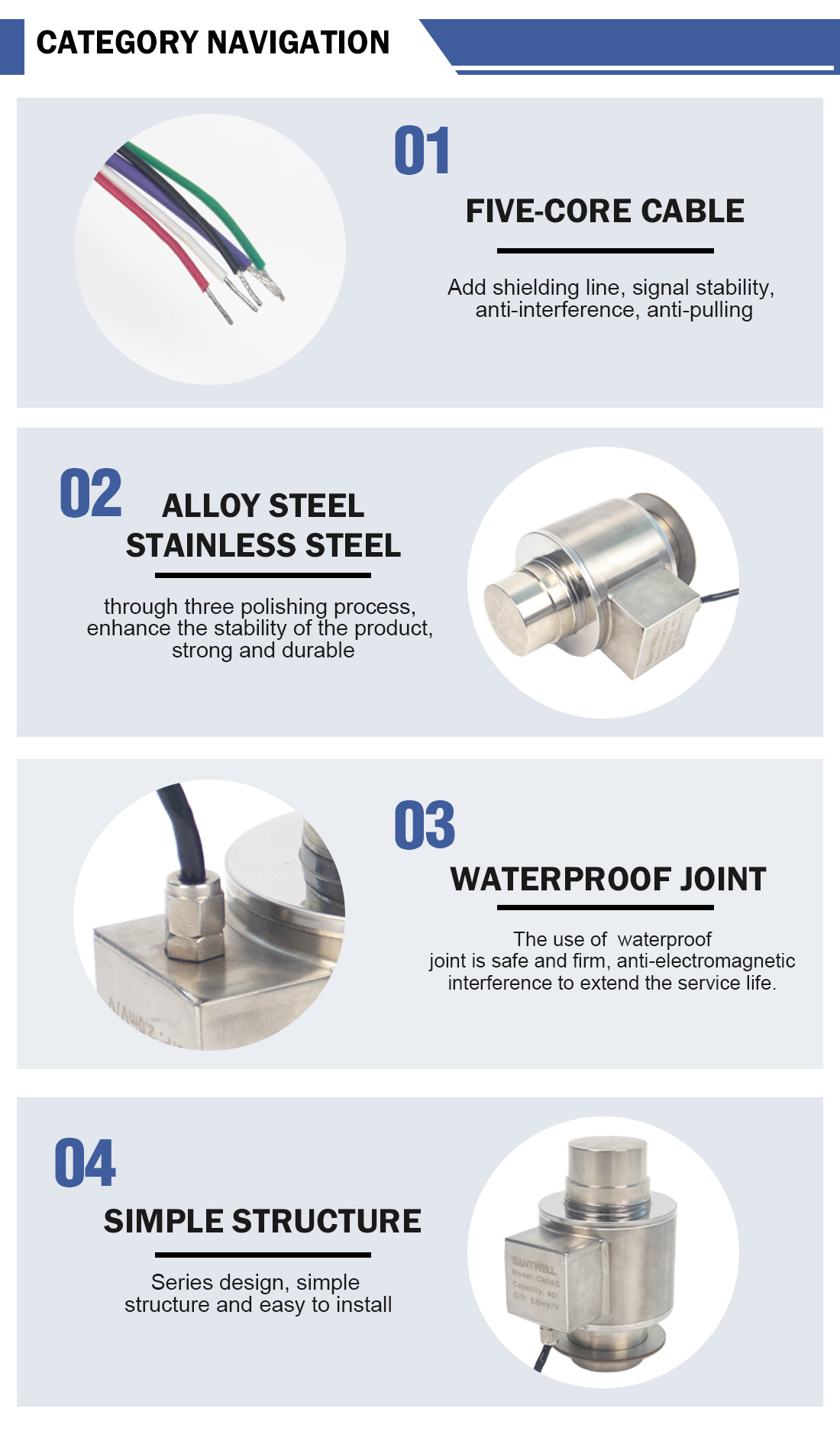

Five-Core Shielded Cable: Enhances signal stability, anti-interference, and pull resistance—key for maintaining the Canister Style load cell’s accuracy, a feature that sets it apart from basic load cell designs.

Waterproof Joint: Secures connections, resists electromagnetic interference, and extends service life—ensuring the Canister Style load cell remains a durable  load cell solution over time.

Simplified Design: Modular structure allows easy installation, ideal for integrating the Canister Style load cell into existing weighing systems, a user-friendly trait that simplifies deploying a high-performance load cell.

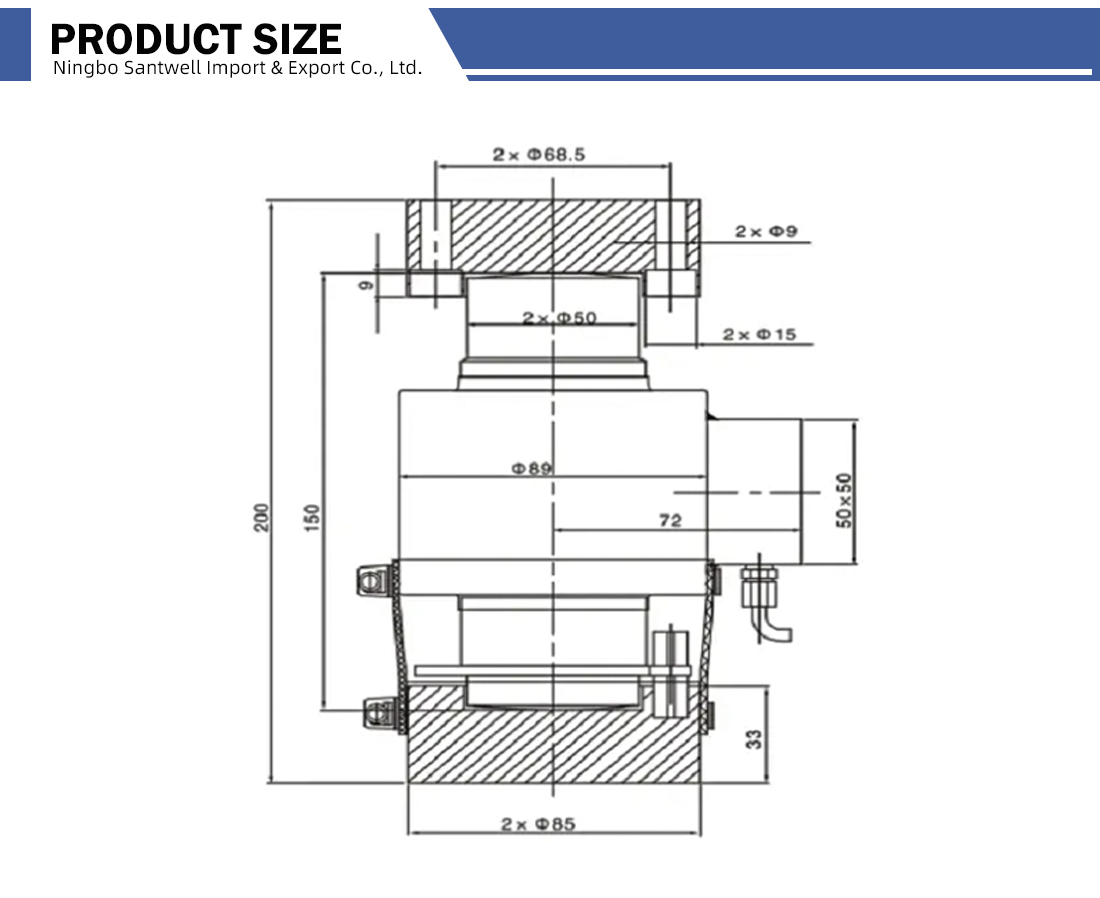

The Product Size diagram provides precise measurements (e.g., diameters Φ50, Φ85, Φ89, height 200mm), critical for accurately mounting the Canister Style load cell—a step that ensures the  load cell operates at peak efficiency. Product images (from multiple angles) highlight the Canister Style load cell’s robust build and engraved specifications (e.g., “Model: CMG”, “Capacity: 40t”), offering visual confirmation of theload cell’s quality and customization options.

In essence, Santwell’s Canister Style load cell merges precision engineering, durable materials, and user-centric design—making it a reliable load cell solution for heavy-duty industrial weighing where only the most robust Canister Style load cell will suffice.
